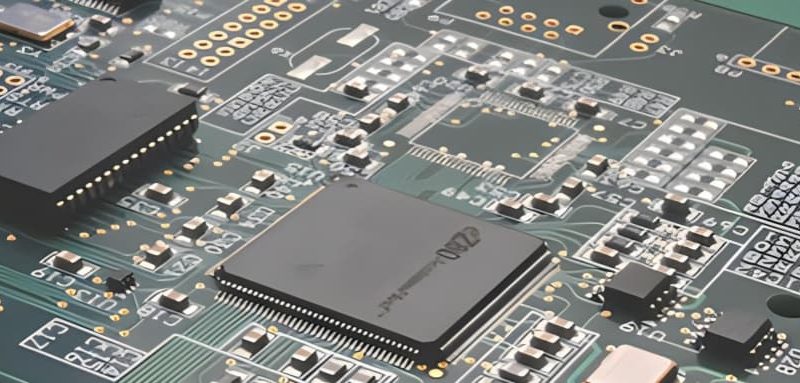

Automotive electronic Printed Circuit Board Assemblies (PCBAs) are the backbone of modern vehicle electronics, ensuring safety, performance, and reliability. Unlike consumer electronics, automotive PCBAs must endure extreme conditions while meeting stringent industry standards.

This guide outlines the seven essential requirements for automotive PCBA manufacturing and their impact on vehicle safety and longevity.

1. Extreme Temperature Resistance (-40°C to 150°C+)

Automotive electronics face scorching engine heat and arctic cold, demanding:

✔ High-Tg materials (e.g., FR-4 with Tg > 170°C)

✔ Thermal cycling resilience (no cracking/delamination)

✔ Automotive-grade solder pastes (e.g., SAC305 alloy)

Why it matters? Temperature-induced failures can disrupt engine control units (ECUs) or safety-critical systems.

2. Vibration & Shock Resistance (ISO 16750-3 Compliance)

Vehicles endure constant vibrations from rough terrain. PCBAs must:

✔ Withstand 50G+ mechanical shock

✔ Use reinforced solder joints (e.g., BGA underfill)

✔ Implement vibration-dampening mounting

Why it matters? Loose connections can cause airbag failures or brake system malfunctions.

3. Electromagnetic Compatibility (EMC – CISPR 25, ISO 11452)

With 100+ ECUs in modern cars, PCBAs must:

✔ Prevent EMI/RFI interference

✔ Use shielded enclosures & proper grounding

✔ Pass radiated/conducted emissions tests

Why it matters? EMI disrupts ADAS, infotainment, and sensor accuracy.

4. Corrosion Resistance (Humidity, Salt Spray, Chemicals)

Exposure to moisture, road salt, and oils requires:

✔ ENIG (Electroless Nickel Immersion Gold) finish

✔ Conformal coating (silicone, acrylic, or urethane)

✔ Sealed connectors & housings

Why it matters? Corrosion leads to sensor failures or electrical shorts.

5. High Reliability & Long Lifespan (AEC-Q100 Components)

Automotive PCBAs must last 10-15+ years with near-zero defects. Key strategies:

✔ AEC-Q100/Q101 certified components

✔ AOI (Automated Optical Inspection) & X-ray testing

✔ Burn-in testing for critical modules

Why it matters? A single faulty ECU can trigger costly recalls.

6. Functional Safety Compliance (ISO 26262 – ASIL Levels)

Safety-critical systems (e.g., brakes, steering) require:

✔ Redundant circuit designs

✔ Fail-safe mechanisms

✔ Flame-retardant substrates (UL94 V-0)

Why it matters? Ensures catastrophic failures are prevented.

7. Strict Process Controls (IATF 16949, PPAP, DFMEA)

Automotive manufacturing follows zero-defect methodologies:

✔ IATF 16949-certified production

✔ PPAP (Production Part Approval Process) documentation

✔ DFMEA (Design Failure Mode & Effects Analysis)

Why it matters? Ensures traceability, consistency, and defect prevention.

Why Choose a Certified Automotive PCBA Manufacturer?

Automotive PCBAs demand specialized expertise beyond consumer electronics. Partnering with an IATF 16949-certified manufacturer like Fuxinpcba technology guarantees:

✅ Full compliance with automotive standards

✅ Advanced testing (vibration, thermal cycling, EMC)

✅ ISO 26262 functional safety expertise

Need a reliable automotive PCBA supplier? Contact us right now for high-reliability solutions.
